How to Choose the Right Flange Guard for Your Industrial Application?

Flange connections are widely used in industrial piping systems, but unexpected leaks can expose workers and nearby equipment to hazardous fluids. Flange guards provide an additional layer of protection by helping contain or redirect spray from these connections.

In this guide, we'll explore the main types of flange guards, their material characteristics, and the key factors to consider when choosing one for your application.

What is Flange Guard?

Flange guards are protective covers installed around pipe flange connections. They help reduce the risk of direct exposure to leaking fluids and may limit the spread of spray around the connection.

Although flange guards offer additional protection, they do not replace proper maintenance, leak detection, or established safety procedures.

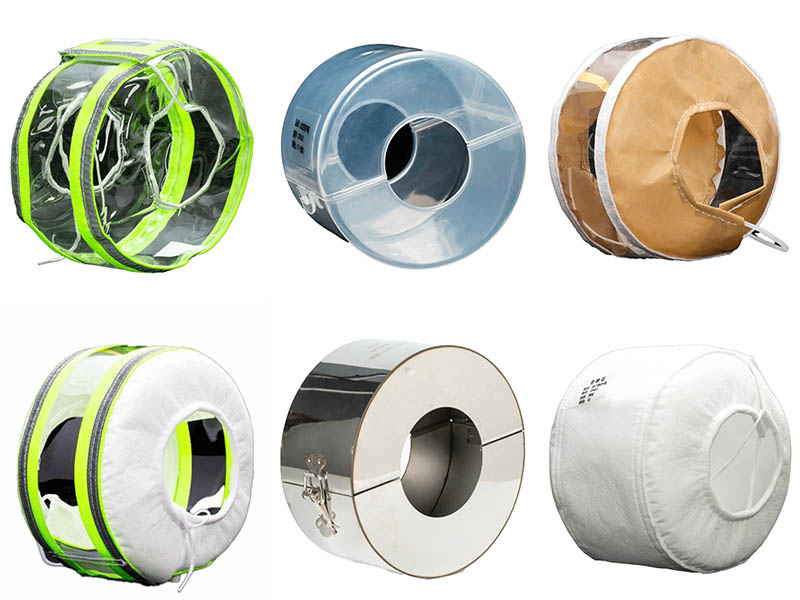

Types of Flange Guards

Different materials offer different characteristics for industrial applications.

• Stainless Steel Flange Guards: Designed for demanding, high-temperature applications, including molten salt and steam pipelines operating above 500°C.
• PVC Flange Guards: Made from mesh PVC fabric, with a specified operating temperature range of -15°C to 90°C.
• PTFE Flange Guards: Available in pure PTFE and PTFE composite constructions, with specified temperature ranges of -70°C to 260°C and -30°C to 150°C, respectively. An optional transparent PFA viewing window is also available.
• PP Flange Guards: An alternative material option whose suitability should be confirmed against the process medium and operating conditions.

Where Is Flange Guard Used?

Flange guards are used in industrial environments where piping connections may present leakage risks. Applications can include chemical processing facilities, power generation, and high-temperature industrial pipelines.

The appropriate material depends on the fluid being transported, operating temperature, and specific installation requirements.

MQ Industry also offers valve protection covers made from PTFE, PVC, and PP, with integrated designs available for ball valves and butterfly valves.

How to Choose the Right Flange Guard

Before selecting a flange guard, consider these key factors:

• Material compatibility: Check the guard material against the chemicals or fluids in the system.
• Operating temperature: Ensure the application falls within the product's specified temperature range.
• Flange specifications: Confirm flange dimensions and applicable standards.
• Inspection requirements: Consider whether a transparent viewing window would be useful for visual checks.
• Installation: Choose a suitable configuration based on the flange design and maintenance requirements.

Find the Right Flange Guard for Your Application

Selecting a suitable flange guard starts with understanding your operating conditions and protection requirements. Reviewing material compatibility and product specifications can help you identify an appropriate option.

Explore MQ Industry's Flange Guard products to learn more about available materials and configurations.
